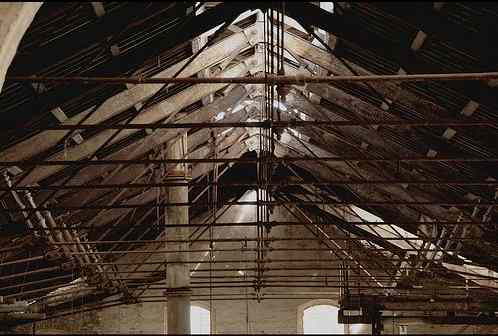

Examples of Structures That Use Trusses

Roof Trusses

You may refer to a truss as the rafter, but it's basically the skeleton of the roof, carrying the weight of the frame and supporting the walls of the building. Trusses are very important to prevent the walls from bending or flexing, more so important for buildings and homes with more than two stories.

The building trusses are usually connected together with galvanized metal plates and connected together in a triangle shape. Most of the time, for smaller buildings and houses, trusses are made of timber because it's reliable and easy to work with, but it's not uncommon for trusses to be made of aluminum, steel, or another material. Most of the time what material the trusses will be made of will depend on the budget of the project.

If you're making your own truss, you need to make sure that you lay out everything before you get started. You want to make sure that you have all the right tools, materials, and equipment, and you need to make sure that you know what you're doing.

If you have any doubt, it may be safer for you to hire a contractor to make and set up the trusses.

There are a few different methods of building trusses, below you'll find basic instructions to build a hip roof truss, which is going to be your average building truss. In order to get started, make sure that you have the following things.

Materials Needed

• 2x6 or 2x8 timber
• 2x4 timber
• Galvanized steel connector plates (gusset plates)
• Screws (at least 1½ inch)
• 3-inch deck screws

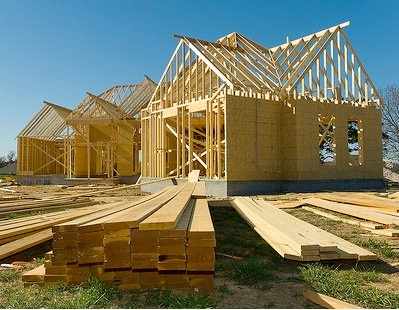

Trusses are important to maintaining the structural integrity of a house.

Choosing the Timber for the Trusses

• The thickness of the timber that you want to use will depend on how much weight the truss will support. Generally, 2x6 or 2x8 size timber is used, but for smaller home additions, sheds, and buildings, 2x4s may be sufficient.
• Purchase the highest quality timber that you can for the top chords (two pieces of timber that determine the roof's pitch) and the outer segments of the bottom cords (bottom pieces of the truss that form the bottom of the triangle) of the trusses. These will support the most weight, causing the most stress on the wood.
• Check to make sure that the lumber is straight when you look from one end to the other. If the lumber is curved, you want to make sure to put the curve facing downward, so that when the weight is put on the truss, the curve is flattened out. You don't want to have the bottom of the curve on the top, as it will just bend further with the weight.

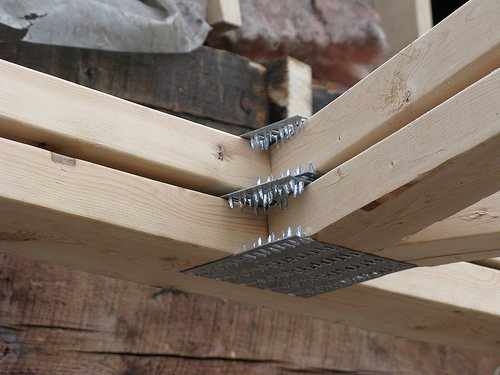

Steel plate hold truss together

Instructions for Measuring, Cutting, and Building Trusses

1. Measure and cut the timber that you'll use for the triangle portion of the truss to the appropriate size of the roof that meets the proper building codes for one truss.
2. Once all of the timber has been cut, fit the pieced together to make sure that the dimensions butt tight together. If the pieces fit properly, use this truss as a pattern for the rest of the trusses required for the building.
3. Use galvanized steel connector plates (gusset plate) to secure the timber in a triangular shape with screws that are at least 1½ inch long.
4. Add a 2x4 brace to dissect the center of the triangle to add more support at the 90-degree angle from the bottom of the center of the angle to the top of the truss. Depending on the design of the truss, the length and angles of the braces will vary.
5. Secure the truss to the frame and leave an appropriate overhang. The overhang will depend on the size of the building or house and the pitch of the roof.
6. Attach the truss to the frame every 2 feet, securing them with 3-inch deck screws. Brace the trusses in place and check for plump prior to securing the frame.
7. Sheathing added on top of the trusses will provide final support to the roof trusses.

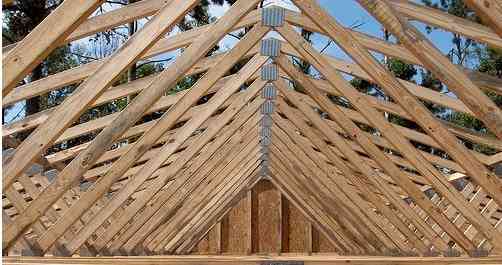

Trusses act as the skeleton of the roof.

Building Trusses to Code

When building trusses, you need to make sure that you comply with any architectural specifications. Make sure that your lumber is according to code. For the most part, you want to stick with timber that contains between 7% to 19% moisture and is fire retardant.

Research Building Codes to Ensure Accuracy

• The lengths and measurements for the truss are accurate
• The pitch and angles are appropriate
• The interior braces are screwed into the correct parts of the triangle and at accurate angles
• The size timber you're using is recommended for the size building or addition
• The truss design is adequate for the roof design in accordance with the National Design Specification for Wood Construction, the National Design Standard for Metal Plate Connected Wood Truss Construction, and the Code of Jurisdiction.

Installing a Truss

You have to install a truss manually, either by a forklift or crane depending on the size of the truss and height of the building. The truss should be carried and moved vertically in order to reduce stress on the joints.

Trusses that are installed manually should be slid into place over the sidewall and rotated into place using poles. The longer the span, the more people that you'll need in order to reduce strain on the truss. Make sure that the trusses are supported at the joints and the peak while being raised and moved.

As mentioned above, you want to use one truss for every two feet, unless otherwise specified.

Types of Roof Truss Designs

Framing Trusses

This article is accurate and true to the best of the author's knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.

Read More From Dengarden

juliet on July 25, 2018:

please what are the names of woo used for trusses

Scott Sanders on June 30, 2018:

I have a double wide mobile home built in 1971. I have completely upgraded and remodeled the house. The house has all 2x4 construction but the roof trusses are only 1x2 with 1/8" wood paneling for vertical support. I want to add an overhang to my house to improve the removal of water in the winter with addition of seamless gutters. To achieve this overhang, I want to remove the existing steel sheet metal roof and add 2x4 trusses in between the existing 1x2 trusses (so I don't disturb my new drywall ceiling) extending these out over the exterior walls. The roof does not have any attic space so I don't see this idea as being an issue since attic access is nonexistent.

My questions are:

1). Does this sound like a plausible idea?

2). What design would be best for the trusses?

3). Is this a project I can do on my own. (I have the skill)

MineraRoofTrusses on February 12, 2018:

Excellent article, keep them coming! To expand on the installation process, we have some detailed installation guides on our website that may be useful.

http://www.minera-rooftrusses.com/installation_gui...

Bill K on August 31, 2017:

I'm doing 20' x 24' addition, what kind of roof trusses I can do, and can I do vaulted ceilings, how?

Joshua Woodsman on November 23, 2016:

Very nicely presented article! Trusses are indeed very important and proper preparation before building one is crucial. I would just like to add that you can have a roof truss on very small buildings like tiny houses, cabins or even sheds, in their simplest form but still taking advantage of the practical triangular shape and way it works with the loads. I wrote an article, explaining in more details what do the roof trusses consist of http://www.pinuphouses.com/roof-elements/ so if anyone is interested, I always appreciate a feedback :)

marty on July 04, 2016:

Seriously can i build a safe 1/2 scissor trust?

Nootch on April 15, 2016:

Surprised to see that heel trusses are not shown...I prefer these because they allow proper insulation installation above the wall-ceiling intersection where it's needed.

hughiewells@yahoo.ca on January 31, 2016:

formula for valley trusses

John on September 23, 2015:

right answer [url]http://myrooff.com/how-to-build-roof-trusses/[/url]

Steel Engineer from Kiev, Ukraine on May 30, 2013:

Jeff Whitley: Trusses do provide lateral stability for walls. When wind hits the broadside of a wall, the force transfers half down to the anchor bolts in the bottom plate and half up into the roof system.

The roof diaphragm (typically 7/16" plywood) transfers the load down into the perpendicular walls, and into those anchors and the foundation.

This is why trusses must be strapped down for uplift, and also have blocking attached to wall top plates.

Personally, I recommend buying manufactured trusses. They are fast and efficient, deliver, and will give you a report showing the bearing and uplift of each different truss.

Buildings are not engineered just to stand under normal conditions. They are designed to withstand a 50-year earthquake or wind event (There is a 2% chance each year of such an event.)

You don't know if it was built right until it is tested.

Jeffn19 from Boston, MA on January 30, 2013:

We have had a lot of recent requests for building roof tresses in Windham NH. I think the primary reason is due to the harsh New England weather the homes there experience. A well structured home is going to allow the property to stand up against the heavy snows and rain storms that frequent the area. http://www.olympicroofing.com/windham-nh-roofing/

Michael Luckado from Hawaii on December 18, 2012:

Interesting post. I've never heard of anyone building their own trusses. Usually they go with rafters instead. As a builder, I like trusses because of the longer spans and the speed at which they go up. thanks for sharing

davyfetons on December 08, 2012:

hello dennis it took me ages to find it this is the web address filling address ,check out there great prices,tell them mr fetons

said you would get him sorted

martinabanaford on July 31, 2012:

you ok steven if you are still in need of them this is the link

filling address , they have a wealth of knowledge ,say I said you would sort him out

ImReady2heal on May 09, 2012:

I helped my Dad and Uncle build a 30'X30' garage 45 years ago. The roof was pretty light, 1"X4" pine lathe under regular tin. The ole time corrugated barn tin. SO, there aren't a lot of weight on it. We built the trusses very simple, one King Post in the center, and 2 angle braces on either side of the post. They used, simply 3/8" plywood gussets, VERY SMALL, just barely covering the cracks where the wood came together. NO glue, and they only used 8 penny nails, hand nailed, of course. Over the years, things have been stored on top of the joist part of the trusses, not a lot, but, some lumber, and long things. My point for this comment is to state that this roof, with the handmade trusses is still holding perfectly after 45 years. None of us were carpenters by any means, but, that two car garage is still solid as a rock. I have been building, now, for around 35 years, and, have dealt with trusses of many different kinds. I have built many trusses, 30' being probably the widest span. I believe that most people don't really understand how strong a truss is. I will be testing a homemade truss joist that I will build out of 2"X4" lumber, with the top and bottom boards laying flat. Then, I will see how much weight it will hold. I think most people are overthinking the trusses too much. Proper angle bracing makes the truss, basically, a solid piece of wood. Just my thoughts....

wilbert on February 01, 2012:

that's fine ,but I still feel that the trusses are designed to carry the covering of a roof over the buildind or a house.And as such some consideration has to be in mind as to the strength

Of the truss ,the weight of the covering and any other loads like chimneys, aircons, and any other load which may be added.

Timber Structure Fan on December 17, 2011:

Hi!

Very good tutorial how to make wodden truss. I m wondering where have you done those pictures of trusses. I m doing a website about timber strucutre in my language. http://www.konstrukcjedrewniane.eu I m a big fun o this kind of structure. Good work !!

Jeff Whitley on August 16, 2011:

Clarification, The Truss or rafter system for the roof generally does NOT support the walls, it's the other way around. ;-)

Terry on May 03, 2011:

A friend of mine hired me to help him build some 80' clear span wooden trusses. we used 2X12 bottom course and 2X12 for the rafter. with 2X4 bracing. we used 1/2" plywood gussets on both sides the gussets are glued and nailed. We set them on 4'centers. They have been in use for three years on a horse riding arena. In northern Oh. we have had up to 5' of snow on the roof. No problems at all. We are trying to find plans for a 100' truss. we want to build another, bigger arena.

steve jenkins on April 24, 2011:

obviously ghost 32 is an expert, and cant read between the lines of the article..other than his ridiculous after thoughts, i find your article really good.

mike on April 23, 2011:

i want to build a garage 30 x 32 will a fink truss span 30 feet clear span without a center support .

jps on March 29, 2011:

YES It is rather Amazing how well trusses work.

However The REAL work is actually in the ENGINEERING process which is VITAL to its success. The engineering process makes certain that there is more than ample upright support to allow for weight deflection principals for the intended span of any given installed truss. These weight deflection principals take into consideration the overall weight of the roof decking and roofing material that will be used and also the fact that multiple roofing layers might eventually be added to the overall weight factor. Its all about MATH!

c d b on January 31, 2011:

I hope you have engineering to support your homemade trusses. These would never pass code without an engineered design specifying a lumber grades and sizes. Also detailing each joints connection details..

ricoshea on October 21, 2010:

metal plates should be pressed on and plywood should be used for home makers and when built properly you will have a truss for a lifetime.

dennisf1959 on September 10, 2010:

I appreaciate the information and I also agree with Ghost32. I ran into the same problem attaching the metal plates so I contacted a local welding shop to fabricate a clamping frame that I could use a 20 ton hydralic jack with. I constructed 13 24' span double fink style trusses using 2x4 lumber. I used them to construct a small 24'x24' workshop with no center support wall. They've held up great and no sag.

Recently a friend of mine constructed a building similar to mine. He also built his own trusses using 7/16 plywood, nails and waterproof glue on both sides. Although his building has been in use for slightly more than a year, his trusses are holding up remarkably well.

Ghost32 on March 22, 2010:

Interesting. I've built the shell of our new home in rural Arizona single handed (only the exterior stucco has to wait for warmer weather) but did have the trusses built by a local specialty company. A few comments and/or questions:

1. I'd never even heard of fire retardant timber for trusses. That's a new one on me!

2. The trusses were delivered in a pile, a bit before they were needed. I hoisted them in place by myself, over the sidewall as you state (how else??), but with no support until they reached the center bearing wall. So the "lead half" did tend to flex sideways at the mending plate joints just a tad, but not enough to threaten structural stability. Conclusion: It's true enough that they "should" be moved vertically to prevent stressing, but "have to"? Nah. I don't "have to" do much, and getting help or equipment just to hoist a truss...don't think so. :)

3. Your hub mentions attaching mending plates, but not "how". One reason I went with having them made was because I suspect doing that correctly involves presses that can "flat-push" the plates into the timber. Over the years, the few I've added via sledgehammer have been tough to apply--one side is all set, but when you hit the other side, the first one pops back out, and so on and so forth. Any clues? After all, I might need to know that someday.

3. Yes, ours are place two feet on center.

4. I now know the design used by the company is a Modified Queen (Multi-Panel), and according to your chart, that makes sense. They're low pitch (as I specified), 2 in 12, and 36 feet in length--right in the ballpark for the Modified Queen. (Though I didn't trust that totally and did build the center bearing wall prior to truss installation.)

5. Your article mentions that 2" x 4" lumber may be okay for smaller projects. Well, I have to say, yes, I've seen bigger timber used...but 90% of all the attics I've seen, and all but one of the residential structures, have been built with 2" x 4" timber. Maybe it's just that I only know folks from the cheap side of the tracks?

Overall, thanks for a solid article!
